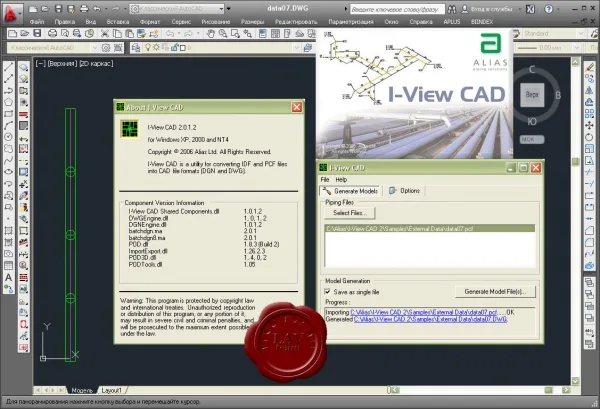

ALIAS I-ViewCAD

I-View CAD converts single-line pipeline isometries (IDF or PCF format) created based on the ISOGEN kernel into 3D AutoCAD and MicroStation files with accompanying data and attribute information. The conversion process takes a few seconds. I-ViewCAD can work in batch mode and convert multiple isometries into a single 3D model. Pipelines can be converted in unit mode, as separate files. Creating 3D files from isometric piping drawings does not require the user to have extensive 3D CAD knowledge.
