AVF pro. Studio

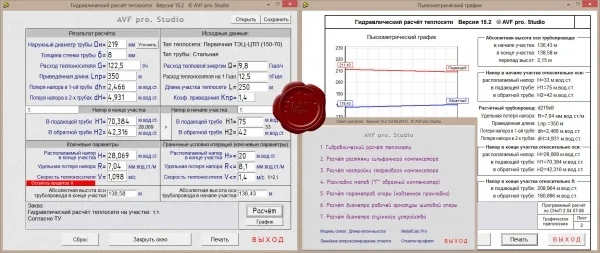

195 AVF pro. Studio v15.2 AVF pro. Studio includes the following software modules: Hydraulic calculation of heating networks. Using an iterative method, the diameter of the heating network pipeline is selected when specifying: thermal load; route length; and boundary parameters of iterations (maximum coolant velocity, maximum specific pressure loss and minimum available pressure at the end of the section). The following types of pipes can be calculated: Steel; Isoproflex A; Casaflex. Calculation of the expansion of a bellows compensator. The program calculates: the maximum length of the gasket; required number of blocks in the compensator; loads on fixed supports; fills in the stretching table (installation temperature varies from –28 to 30 C). You can use the built-in regulatory framework for KSO bellows expansion joints and steel pipes used in heating networks. Calculation of the start
