CSoft EnergyCS Line

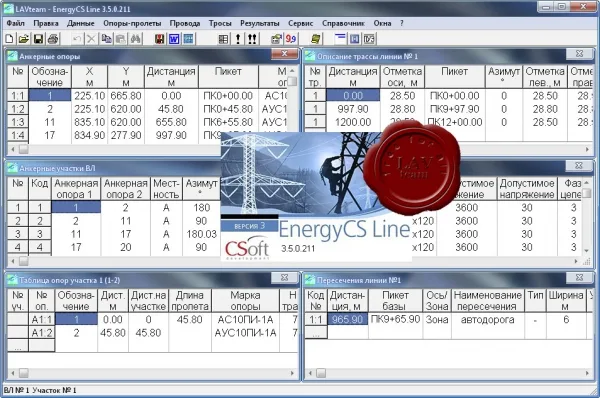

453 CSoft EnergyCS Line v3.5.0.211 The CSoft EnergyCS Line software package is designed to automate the design of the mechanical part of overhead power lines (OHL), fiber-optic communication lines (FOCL), suspended on OHL supports, as well as flexible busbars of open switchgears (OSD) of power stations and substations. CSoft EnergyCS Line allows you to solve the following tasks: perform automated placement of intermediate supports along the route profile, taking into account intersections and prohibited zones; obtain wire sag curves, dimensions and distribution of mechanical stresses in any span (in normal mode or in the mode of a wire break in one of the spans); obtain tables of mounting tensions and mounting arrows for wire sag, lightning protection cable and optical cable; assess the need to install vibration dampers and calculate their mounting points on the site.
