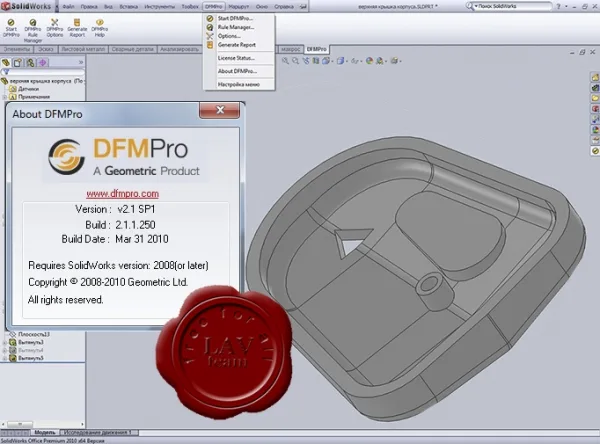

Geometric DFMPro

For SolidWorks Geometric DFMPro allows you to conduct an express analysis of the manufacturability of a part in terms of the capabilities and principles of milling or turning in the SolidWorks environment. You simply select the type of part - milling or turning - and in a matter of seconds you receive a detailed report on possible processing problems. SolidWorks will find all elements that are not accessible to the mill, that do not meet plant standards for depth/diameter ratio or for belonging to a standard range of hole diameters, rounded external edges and triangular internal corners, holes that do not extend onto external faces perpendicular to them or intersect internal cavities, and even tolerances that are too high in accuracy. For turned parts, grooves without rounding on the internal diameter and all non-rounded circular edges will also be found. Numerical values ​​of manufactur
